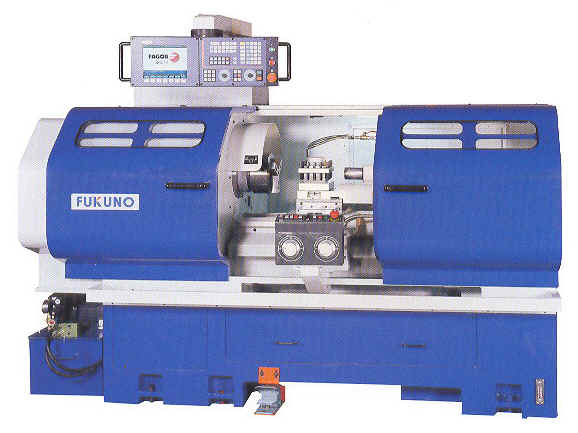

HIGH SPEED CNC LATHE 4000 RPMFL-1840N/1860N
Description:
MODEL
FL-1840N
FL-1860N
Swing over bed (mm/inch)
Ø460/18"
Swing over cross slide (mm/inch)
Ø220/9.4"
Center height (mm/inch)
230/9"
Distance between center (mm/inch)
1,000/40"
1,520/60"
Width of bed (mm/inch)
350/13.8"
Spindle speed (rpm)
2 STEPS
4000 rpm
Spindle nose
A16 D16
Spindle bore (mm/inch)
Ø 52/2"
Chuck size (inch)
8"
Longitudinal working stroke-Z axis (mm/inch)
895/35.2"
1,415/55.7"
Cross slide working stroke-X axis (mm/inch)
280/11"
Topslide width (mm/inch)
115/4.5"
Size of toolpost shank (mm/inch)
25x25 / 1"x1"
Tailstock diameter (mm/inch)
Ø 65/2-1/2"
Tailstock travel (mm/inch)
150 / 6"
Tailstock taper
MT4
Spindle motor
5.5 Kw
7.5 Kw
Drives (X,Y)
AC SERVO
Rapid traverse X/Z
5/10 m/min (200/400 ipm)
Coolant pump motor
1/8 HP
Machine weight N.W/G.W. (kgs)
2.500/5,500
2,750/6,000
Packing measurement app. (mm/inch)
2,540x1,450x2,200100"x56.3"x87"
3,040x1,427x2,200119"x56.3"x87"
STANDARD ACCESSORIES:
8" 3-Jaw hydraulic chuck (Ø 45)
Electrical H4 tool post
With FAGOR 8055TC control, 11" LCD, half key
Tool box (including srew-6 pcs & raiser block - 6 pcs)
OPTIONAL ACCESSORIES:
Hydraulic tailstock
Electrical P8 tool turret (SAUTER)
Hydraulic P8 tool turret (SAUTER)
Live center
Steady rest
Follow rest
