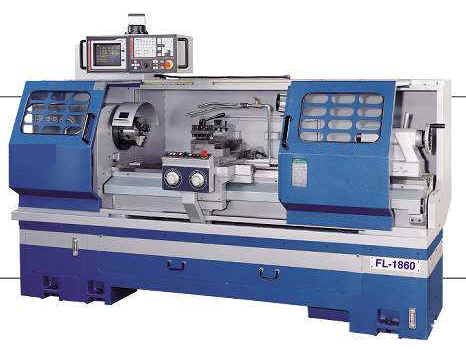

 HIGH SPEED CNC LATHE
4000 RPM
FL-1840N/1860N
|
| Description: |
|
| FL-1860/1840/2140/2160 |
 |
| MODLE |
A |
B |
C |
| 1840/2140 |
1,000mm (40") |
895mm (35.2") |
770mm (30.3") |
| 1860/2160 |
1,520mm (60") |
1,415mm (55.7") |
1,290mm (50.7") |
| 2660 |
1,520mm (60") |
1,380mm (54.3") |
1,350mm (53.1") |
| 2680 |
2,030mm (80") |
1,890mm (74.4") |
1,860mm (73.2") |
| 26120 |
3,050mm (120") |
2,910mm (114.6") |
2,880mm
(113.4") | |
|
| MODEL |
FL-1840 |
FL-1860 |
FL-2140 |
FL-2160 |
| Swing
over bed (mm/inch) |
Ø460/18" |
Ø530/20.9" |
| Swing
over cross slide (mm/inch) |
Ø240/9.4" |
Ø300/11.8" |
| Center
height (mm/inch) |
230/9" |
265/10.4" |
| Distance
between center (mm/inch) |
1,000/40" |
1,520/60" |
1,000/40" |
1,520/60" |
| Width
of bed (mm/inch) |
350/13.8" |
350/13.8" |
| Spindle
speeds-4 steps (rpm) |
H1:
961~2500 |
H1:
621~1600 |
| H2:
341~960 |
H2:
241~620 |
| L1:
131~340 |
L1:
91~240 |
| L2:
50~130 |
L2:
35~90 |
| Spindle
nose |
A16
D16 |
A18
D18 |
| Spindle
bore (mm/inch) |
Ø
52/2" |
Ø
80/3.2" |
| Chuck
size (inch) |
8" |
10" |
| Longitudinal
working stroke-Z axis (mm/inch) |
895/35.2" |
1,415/55.7" |
895/35.2" |
1,415/55.7" |
| Cross
slide working stroke-Z axis (mm/inch) |
280/11" |
280/11" |
| Topslide
width (mm/inch) |
115/4.5" |
125/4.9" |
| Size
of toolpost shank (mm/inch) |
25x25
/ 1"x1" |
25x25
/ 1"x1" |
| Tailstock
diameter (mm/inch) |
Ø
65/2-1/2" |
Ø
65/2-1/2" |
| Tailstock
travel (mm/inch) |
150
/ 6" |
150
/ 6" |
| Tailstock
taper |
MT4 |
MT4/MT5 |
| Spindle
motor |
7.5
HP (10HP option) |
10
HP (15HP option) |
| Drives
(X,Y) |
DC
SERVO |
DC
SERVO |
| Rapid
traverse X/Z |
5/10
m/min (200/400 ipm) |
5/10
m/min (200/400 ipm) |
| Range
of feeds in manual mode |
0.01~500
mm/rev |
0.01~500
mm/rev |
| 0.004~19.68
in./rev |
0.004~19.68
in./rev |
| Coolant
pump motor |
1/8
HP |
1/8
HP |
| Machine
weight (kg/lbs) |
2.270/5,000 |
2,724/6,000 |
3,000/6,600 |
3,500/7,700 |
| Packing
Measurement |
2,280x1,430x2,200 |
2,900x1,430x2,200 |
2,280x1,500x2,240 |
2,900x1,500x2,240 |
| ¡@ |
90"x56.3"x87" |
114"x56.3"x87" |
90"x59.6"x89.6" |
114"x59./6"x89.6" |
| |
