| Description: |
|

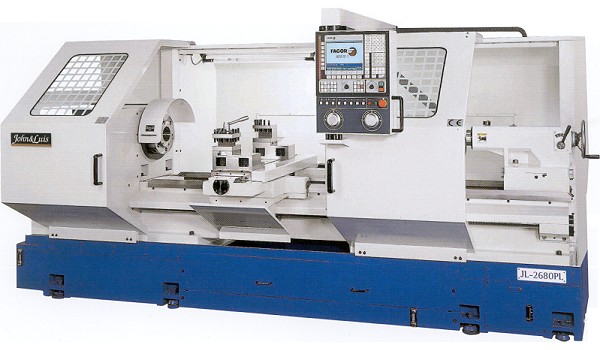

| FL-2660/2680/26120 |

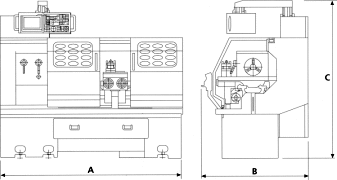

DIMENSIONAL DRAWING
 |
| MODLE |
A |
B |
C |
| 1840 |
2,190mm (86.2") |
1,280mm (50.4") |
1,900mm (74.8") |
| 1860 |
2,710mm (106.7") |
1,280mm (50.4") |
1,900mm (74.8") |
| 2140 |
2,190mm (86.2") |
1,340mm (52.7") |
1,935mm (76.2") |
| 2160 |
2,710mm (106.7") |
1,340mm (52.7") |
1,935mm (76.2") |
| 2660 |
3,795mm (149.4") |
2,090mm (82.3") |
1,920mm (75.6") |
| 2680 |
4,295mm (169.1") |
2,090mm (82.3") |
1,920mm (75.6") |
| 26120 |
5,295mm (208.5") |
2,090mm (82.3") |
1,920mm (75.6") |
|
| MODEL |
FL-2660 |
FL-2680 |
FL-26120 |
| Swing over bed (mm/inch) |
Ø660/26" |
| Swing over cross slide (mm/inch) |
Ø370/14.5" |
| Center height (mm/inch) |
330/13" |
| Distance between center (mm/inch) |
1500/60" |
2000/80" |
3000/120" |
| Width of bed (mm/inch) |
480/18.9" |
| Spindle speeds-4 steps (rpm) |
H1: 541~1200
H2: 166~540
L1: 76~165
L2: 25~75 |
| Spindle nose |
A111 D111 |
| Spindle bore (mm/inch) |
Ø 104/4.1" |
| Chuck size (inch) |
15" |
| Longitudinal working stroke-Z axis (mm/inch) |
1500/60" |
2000/80" |
3000/120" |
| Cross slide working stroke-Z axis (mm/inch) |
400/15.7" |
| Topslide width (mm/inch) |
140/5.5" |
| Size of toolpost shank (mm/inch) |
32x32 / 1.3"x1.3" |
| Tailstock diameter (mm/inch) |
Ø 105/4.1" |
| Tailstock travel (mm/inch) |
150 / 6" |
| Tailstock taper |
MT5 |
| Spindle motor |
15HP |
20HP/25HP(optional)
|
| Drives (X,Y) |
AC SERVO |
| Rapid traverse X/Z |
5/10 m/min (200/400 ipm) |
| Range of feeds in manual mode |
0.01~500 mm/rev
0.004~19.68 in./rev |
| Coolant pump motor |
1/4 HP |
| Machine weight (kg/lbs) |
5000/11000 |
5500/12100 |
6500/14300 |
| Packing measurement app. (mm/inch) |
2660: 3985x2240x2220/157"x88"x8734"
2680: 4485x2240x2220/176.6"x88"x87.4"
26120: 5485x2240x2220/216"x88"x87.4"
|
|
|
|
|
