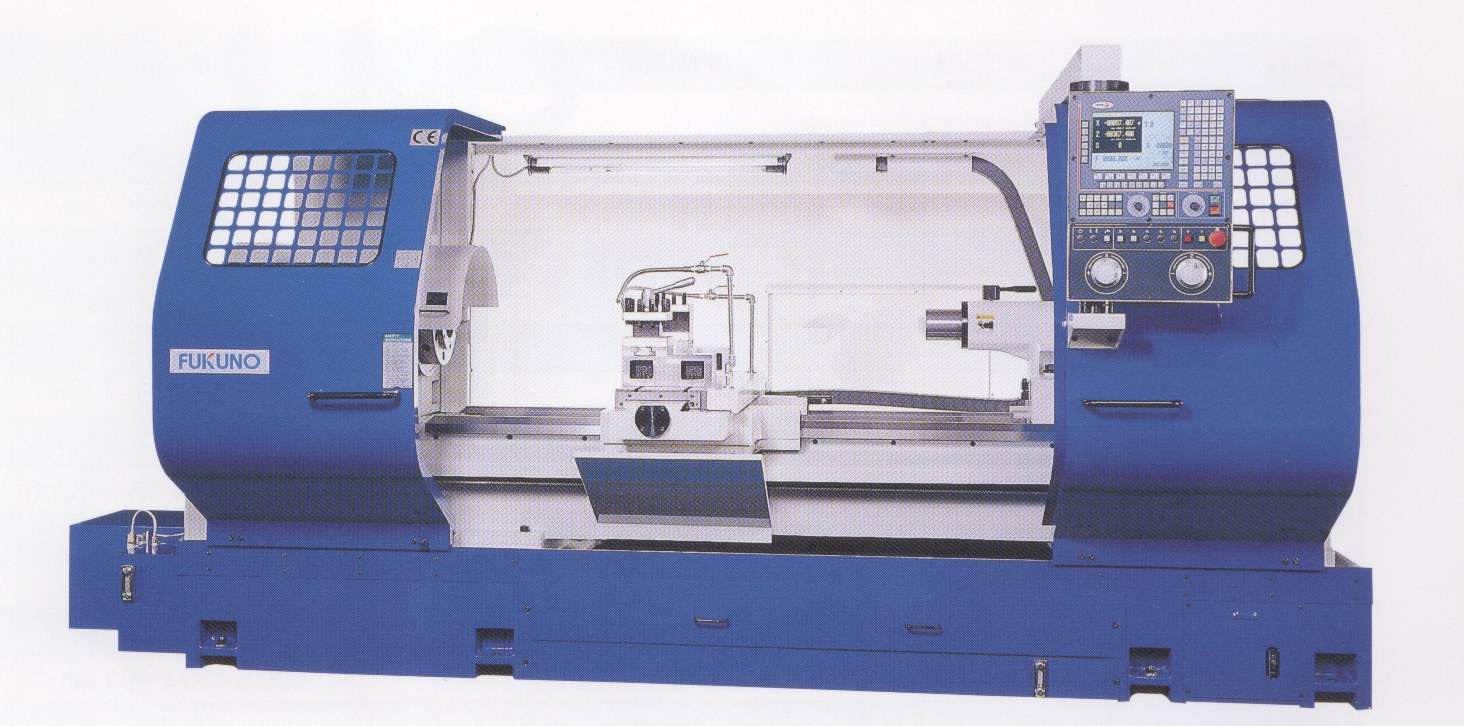

| MODEL |
FL-3060 |
FL-3080 |
FL-30120 |
| Swing
over bed (mm/inch) |
Ø770/30.3" |
| Swing
over cross slide (mm/inch) |
Ø480/18.9" |
| Center
height (mm/inch) |
385mm/15" |
| Distance
between center (mm/inch) |
1500/60" |
2000/80" |
3000/120" |
| Width
of bed (mm/inch) |
480/18.9" |
| Spindle
speeds-4 steps (rpm) |
H1:
541~1200 |
| H2:
166~540 |
| L1:
76~165 |
| L2:
25~75 |
| Spindle
nose |
A111
D111 |
| Spindle
bore (mm/inch) |
Ø
104/4.1" |
| Chuck
size (inch) |
15" |
| Longitudinal
working stroke-Z axis (mm/inch) |
1500/60" |
2000/80" |
3000/120" |
| Cross
slide working stroke-Z axis (mm/inch) |
400/15.7" |
| Topslide
width (mm/inch) |
140/5.5" |
| Size
of toolpost shank (mm/inch) |
32x32
/ 1.3"x1.3" |
| Tailstock
diameter (mm/inch) |
Ø
105/4.1" |
| Tailstock
travel (mm/inch) |
150
/ 6" |
| Tailstock
taper |
MT5 |
| Spindle
motor |
20HP |
25HP(optional) |
| Drives
(X,Y) |
AC
SERVO |
| Rapid
traverse X/Z |
5/10
m/min (200/400 ipm) |
| Range
of feeds in manual mode |
0.01~500
mm/rev |
| 0.004~19.68
in./rev |
| Coolant
pump motor |
1/4
HP |
| Machine
weight (kg/lbs) |
5200/11400 |
5700/12540 |
6700/14740 |
| Packing
Measurement |
3060:
3985x2240x2220/157"x88"x87.4" |
| ¡@ |
3080:
4485x2240x2220/176.6"x88"x87.4" |
| ¡@ |
30120:
5485x2240x2220/216"x88"x87.4" |
