| DESCRIPTION |

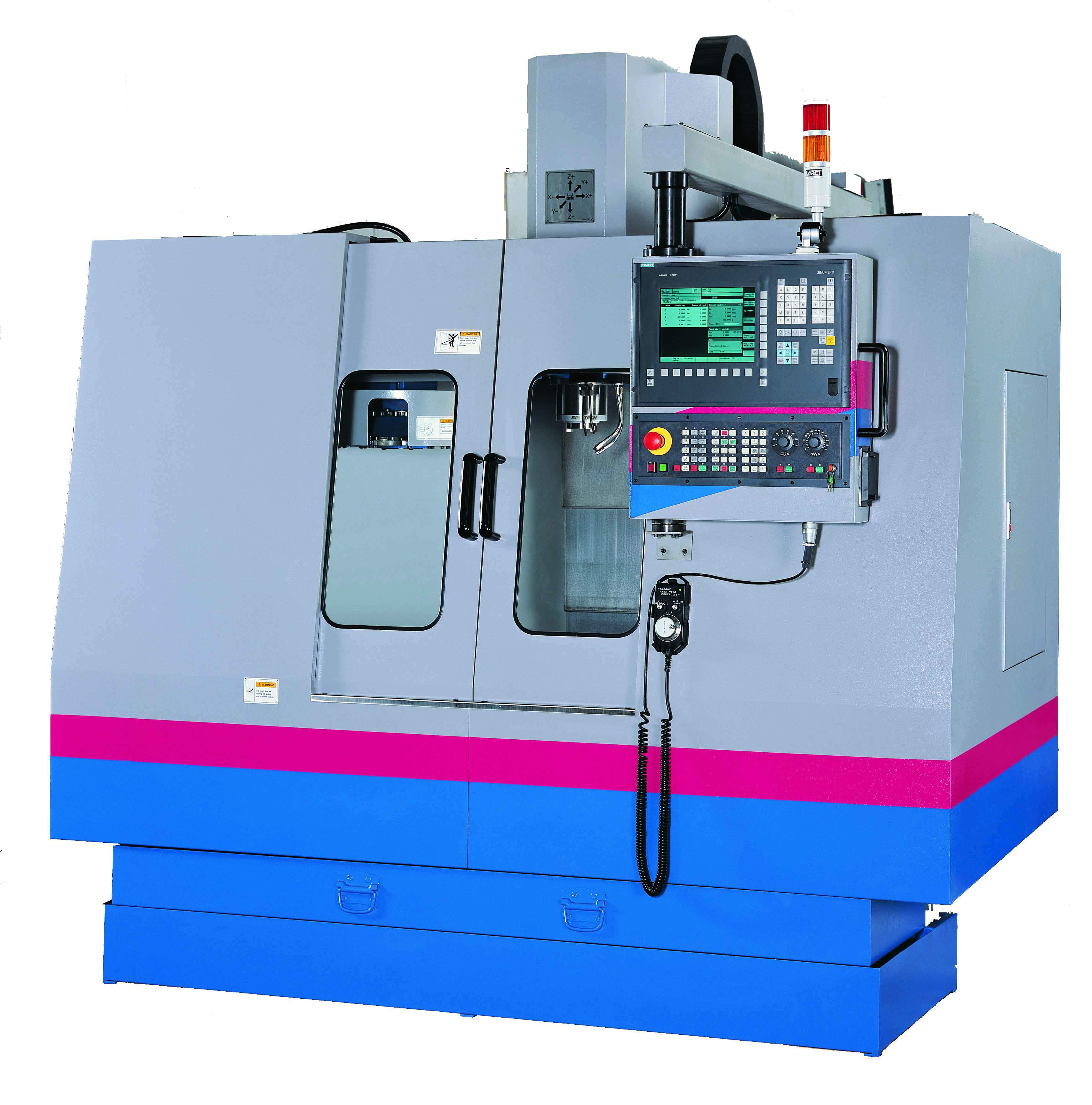

FM-800 |
| Travel |
|
| Longitudinal travel (X) |
800 mm |
| Cross travel (Y) |
480 mm |
| Vertical travel (Z) |
510 mm |
| Spindle nose to table surface |
125-635 mm |
| Spindle center to column |
500 mm |
| Table surface to floor |
760 mm |
| Head stock |
|
| Spindle speed |
8000 rpm |
| Spindle diameter |
65 mm |
| Spindle taper |
BT-40/Opt
CAT-40 |
| ATC |
Armless |
| Tool selection |
Bi-Directional |
| No. of tools |
16 sets |
| Max. tool weight |
6 kgs |
| Max. tool diameter |
80 mm |
| Max. tool length |
250 mm | |
| DESCRIPTION |
FM-800 |
| Axis feed |
|
| X-Y-Z Rapid traverse |
16 M/min, Optional 24 M/min |
| Cutting feed |
10 M/min |
| Table |
|
| Table size |
850 x 450 mm |
| Table working area (X.Y.Z) |
800 x 450 x 400 mm |
| Table load capacity |
500 kgs |
| T-solt |
18 mm x 4 slot-100 mm |
| General infomation |
|
| Machine size |
1930 x 2200 x 2450 mm |
| Machine weight |
4500 kg |
| Power require |
15 kw |
| Spindle motor (Cont/30 min) |
7.5 kw |
| Servo motor (X.Y.Z) |
1 kw |
| Controller |
FAGOR, SIEMENS, ANILAM |
| Coolant system |
1/4 HP |
| Lubrication system |
25 w-6 kg/cm2 4.6 Liter |
| Pneumatic supplier |
6 kgs/cm2 | |
